High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80

Brand Name : ZLONE

Model Number : ZLRP3004024WR

Certification : CE ROHS TUV SGS SAA FCC

Place of Origin : China

MOQ : none

Price : negotiable

Payment Terms : L/C, T/T, MoneyGram, , Western Union

Supply Ability : 50000pcs/Month

Delivery Time : 7-10working days

Packaging Details : 20pcs/CTN 700*25*700 /CTN 22kgs/ CTN

Power : 24W

Size : Φ300*40mm

Lumen : 2000-2100LM

Shape : Round surface mounting

Warranty : 3 Year

certificate : CE ROHS TUV FCC SAA SGS

Protection Grade : IP44

Lifetime usage : 50000Hours

Contact Now

CE&RoHS Square Surface Mounted Dimmable Led Panel SMD2835 24W 2000LM 4000K CRI80

Product structure:

High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80

Specification:

Part No.	ZLRP3004024WR
Optics Parameters	Light Source	120pcs SMD2835 EPISTAR
	Luminous Flux(lm)	2100LM
	CCT(K)	warmwhtie(3000K)/white(6000K)/ Neturalwhite4000K
	CRI(Ra)	more than 80Ra
	Beam Angle	120 degree
	Light Attenuation ratio (%)	less than 3% in 30,000Hrs
	Lifespan (Hrs)	more than 50,000Hrs
Electric Parameters	Input Voltage(V)	85-265Vac
	Frequency(Hz)	50/60 Hz
	Input Current(mA)	86mA (@ 220 Vac )
	Total Power(W)	24W
	Power Factor	0.95
	Turn-on Time(S)	less than 0.05 S (@ 220Vac)
	Dielectric Voltage Withstand Test	3750Vac/1min
Structure Parameters	Material	Aluminum+ PMMA
	Size(mm)	300mm*40mm
	Net Weight(g)	125g
	Water Proof(IP)	Indoor Use Only IP44
Integrated Parameters	Operating Temperature	-40 ~ +55 Centigrade
	Storage Humidity	0% ~ 95%R.H.
	Dimmable	Optional

Feature LED surface panel light :

1.New generation LED Panel Light adopts qualified super bright LED as light source, which is stable, long life and no UV & IR emission.
2.The anodized aluminum frame is stylish and fashionable with everlasting color.
3.It is powered by low voltage constant current driver, which is safety, energy saving and long life.
4.LED Panel light is the ideal replacement for traditional grid lights and fluorescent tubes. Moreover, the Panel light creates extremely harmonies and uniform lights, which conventional light never achieved.

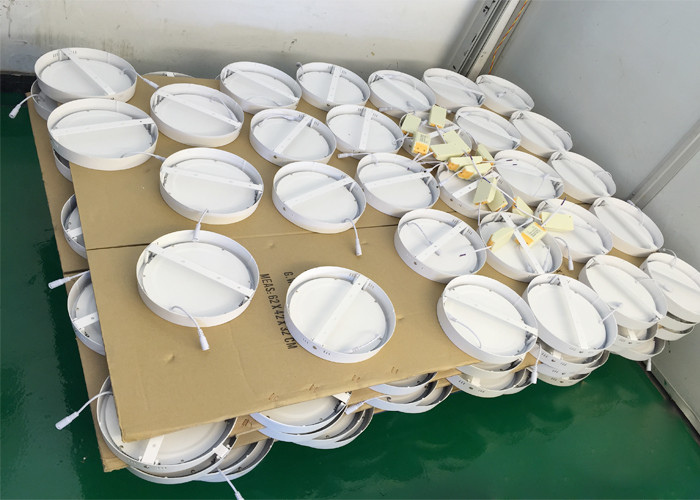

Product Photos:

More sizes available:

Isolated Constand Current Driver used with High Voltage/Current Protection and PF>0.5

High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80
